Model NO. 40 series
Shape T - Profile
Grade 6000 Series
Temper T3-T8
Window & Door Aluminium Profile 60 Series
Alloy Alloy
Surface Finishing Anodic Oxidation
Alloying Ingredient 6063
Certification CE, ISO
Polished Aluminum Profile Mechanical Polishing
OEM Support
Color Sliver/Black/Custom
Transport Package Exoport Packing or According Requirement
Specification 6.1m
Trademark Synrise
Origin China
HS Code 76042100
Packaging & Delivery
Package size per unit product 40.00cm * 40.00cm * 60.00cm Gross weight per unit product 2.000kg
Product Description

T-slot aluminum profile

PG40 T-slot aluminum profile is recommended for applications with high loads, such as heavy work stations, fixtures, machine supporting structures, transporting shuttles etc. The optimized load-carrying capacity of 40 dimension offers a cost effective and stable solution for design engineers. Areas of the basic frame designed which are subject to less load can be constructed from light dimensions for optimized weight and cost.2 series modular dimensions 40 in stock:-Strut profiles slot 8 with decorative molding on surface-Strut profiles slot 10 with satin surface treatment. This series is designed with 10.2mm slots for applications with extremely strong connections.
SeriesModular Assembly System
Profile GroupPG 40
Material6063-T5
Surface TreatmentAnodized (none for section)
Effective Length6000mm
A long frame (~ 6000 mm) can also be customized.
ColorSilver/ Customized

Product Introduction

T SlotCrossSectionCoreHoleSlot WidthSlotDepthWallThicknessProfile Group
(mm)(Ø)(mm)(mm)(mm)
128.211.53PG 40

Dimensions of PG 40 series

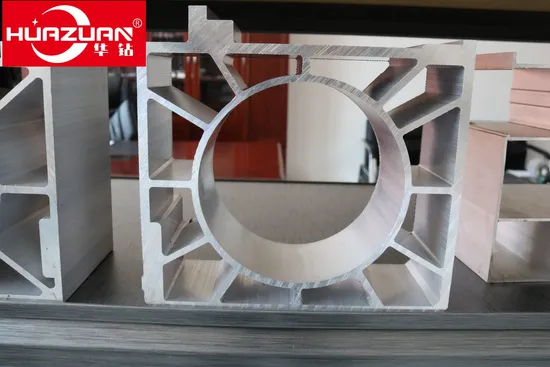

Custom 6063 20 30 40 45 50 60 Series Anodized Industrial Aluminum Profile Supplier T Slot Extruded Modular Frame System Aluminium Extrusion Profile

DescriptionMoment ofInertialx(cm4)Moment ofInertialy(cm4)Moment ofResistanceWx(cm3)Moment ofResistanceWy(cm3)Mass(kg/m)Part No.
40x40, 2 slots, Type A7.207.102.702.401.3040.1.040040.02.01
40x40, 2 slots, Type B7.407.003.703.501.3040.1.040040.02.02
40x40, 2 slots, R907.507.503.803.801.4540.1.040040.02.90
40x40, 4 slots8.708.704.404.401.4540.1.040040.04.01
40x40, 4 slots, Heavy10.4010.405.205.201.8540.1.040040.04.02
40x60, 4 slots12.8025.906.408.602.1540.1.040060.04.01
40x80, 6 slots16.0058.008.0014.502.5040.1.040080.06.01
40x80, 6 slots, Heavy18.2071.509.1017.903.1040.1.040080.06.02
40x120, 8 slots, Heavy26.00219.0013.0036.504.5040.1.040120.08.02
40x160, 10 slots, Heavy34.00488.7017.0061.105.5540.1.040160.10.02
80x80, 8 slots100.60100.6025.2025.203.9040.1.080080.08.01
80x80, 8 slots, Heavy126.30126.3031.6031.605.1040.1.080080.08.02

Application

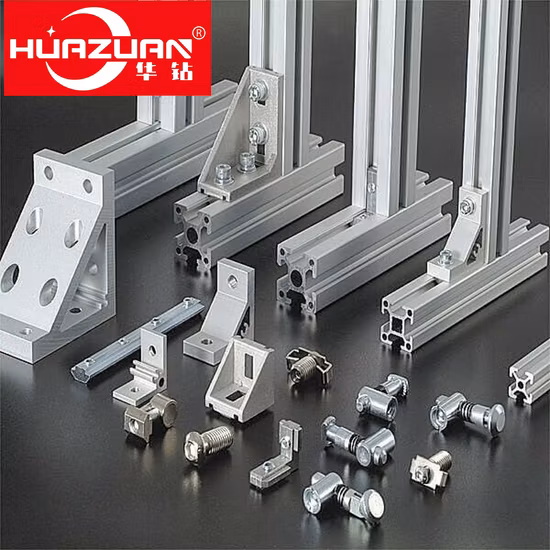

Flexibility and easy operation of assembly technology makes it possible for the factories to adapt to the rapidly changing environment and requirement.Based on these features, We offers a comprehensive modular assembly system consist of aluminum profiles, connectors, fasteners and accessories.With this integrated system, your requirements for upgrading production processes could be easily and fully met - from a simply assembled frame, material shuttle and storage rack through to machine guarding, protective devices, workbench and any imaginable profile applications.
